The Laserworld CS-2000RGB FX MK2 has three grating effects built in in addition to the graphics capable scanners: line grating and burst grating .
Together with the ca. 130 (layers, tunnels, fences, waves, etc.) stored on the laser, these effects offer a variety of combinations for impressive illumination of medium-sized to large locations. The grating effects make the projected patterns appear as if they were displayed by many projectors at the same time. The resulting extensiveness allows for effects that could not be achieved in any other way.
But that’s not everything the Laserworld CS-2000RGB FX MK2 has to offer:

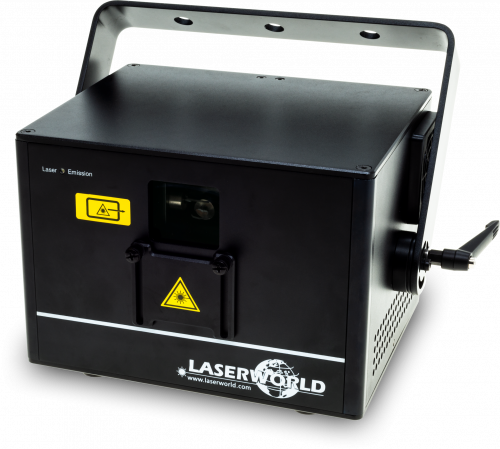

The Laserworld CS-2000RGB FX MK2 is a pure diode, analog modulated, full color RGB laser system with a total output power of up to 2’000 mW and a guaranteed output power of 1’600 mW. The red laser source has an output power of 250 mW / 635 nm, the green of 250 mW / 520 nm and the royal-blue laser source has an output power of 1’100 mW / 450 nm. The diode laser sources ensure powerful laser beams. The projector has good beam specifications with a beam diameter of ca. 4 mm and beam divergence of 1.1 mrad. The galvo system has a scan speed of up to 28kpps @ 8° ILDA.
Pattern size can be set by two rotary buttons on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display.
There is no airflow in the optical compartment, the temperature is regulated through the separate cooling fins compartment. This reduces maintenance and cleaning requirements to a minimum.
Through DMX, in the stand-alone mode as well as in the sound-to-light mode about ca. 130 (layers, tunnels, fences, waves, etc.) can be projected in different colors and in various speed. If the stand-alone mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound.
Next to the modes mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX cable to a main projector (master projector) project the same patterns like the master projector.
The Laserworld CS-2000RGB FX MK2 is computer controllable through a professional ILDA interface. Thus own or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software (e.g. Showeditor or Showcontroller).
There are safety features like a key switch, an interlock and an on-off switch.
The Laserworld CS-2000RGB FX MK2 show laser projector comes with a compact housing, which is light weight and has a stable bracket. The 360° mounting bracket allows for different mounting positions: a hanging as well as a standing installation is possible – ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.
The Laserworld CS-2000RGB FX MK2 is ideal for semi-professional applications and is perfectly suitable in medium sized to large clubs and discos as well as for mobile DJs, private use and in any other party location.
2 W pure diode RGB laser system
two additional grating effects: Line and Burst
DMX controllable, master-slave operation possible
Full diode projector – no DPSS anymore
Computer controllable via ILDA
Plug & play: Sound-to-light and stand-alone modes
Capable of basic graphics – 28kpps @ 8° ILDA scanners
Full color with analog modulation
Front panel laser beam masking plate
360° mounting bracket
