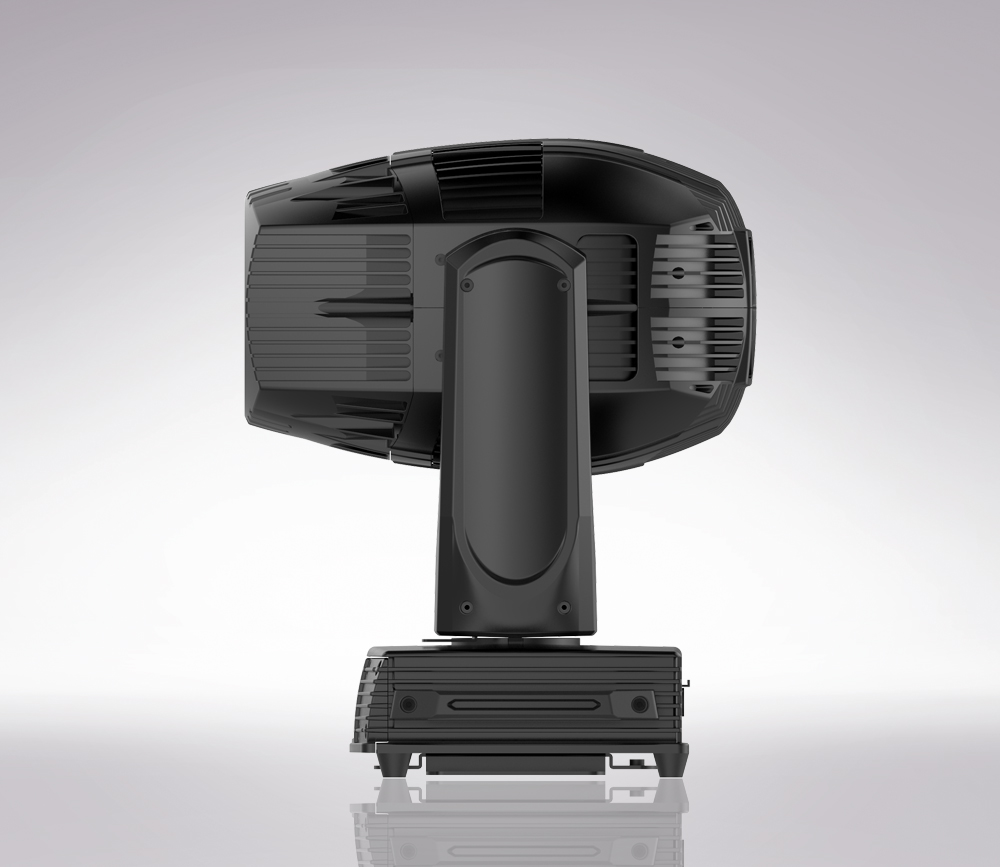

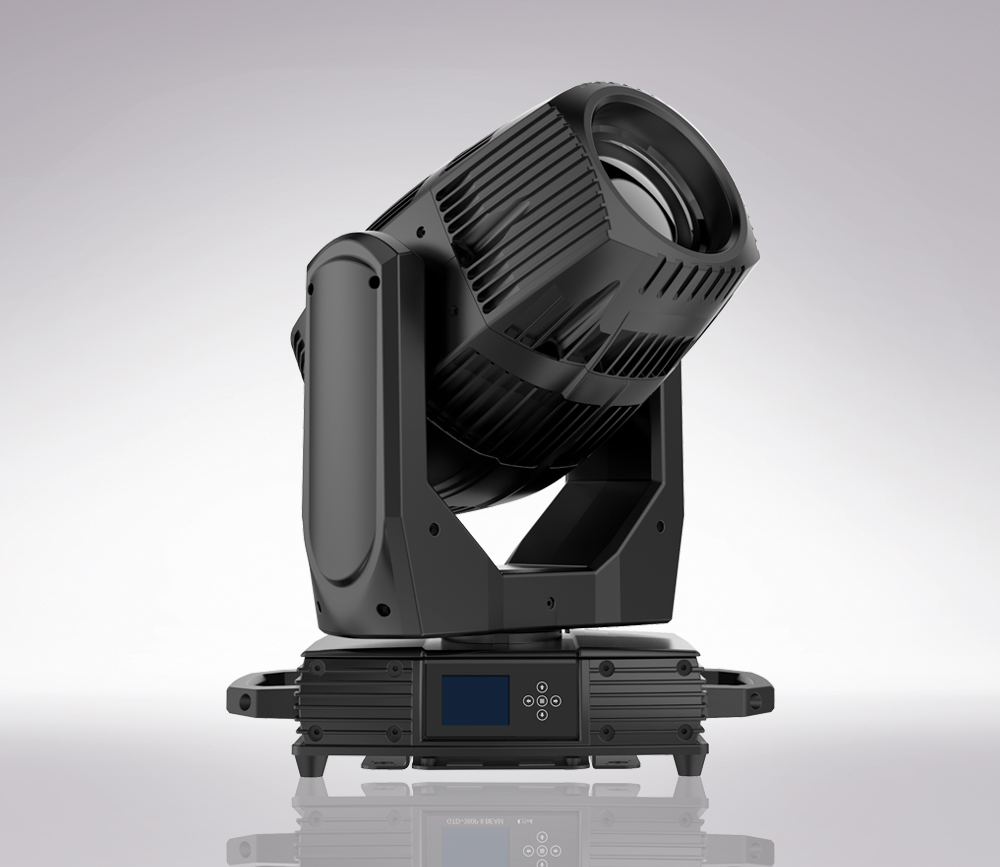

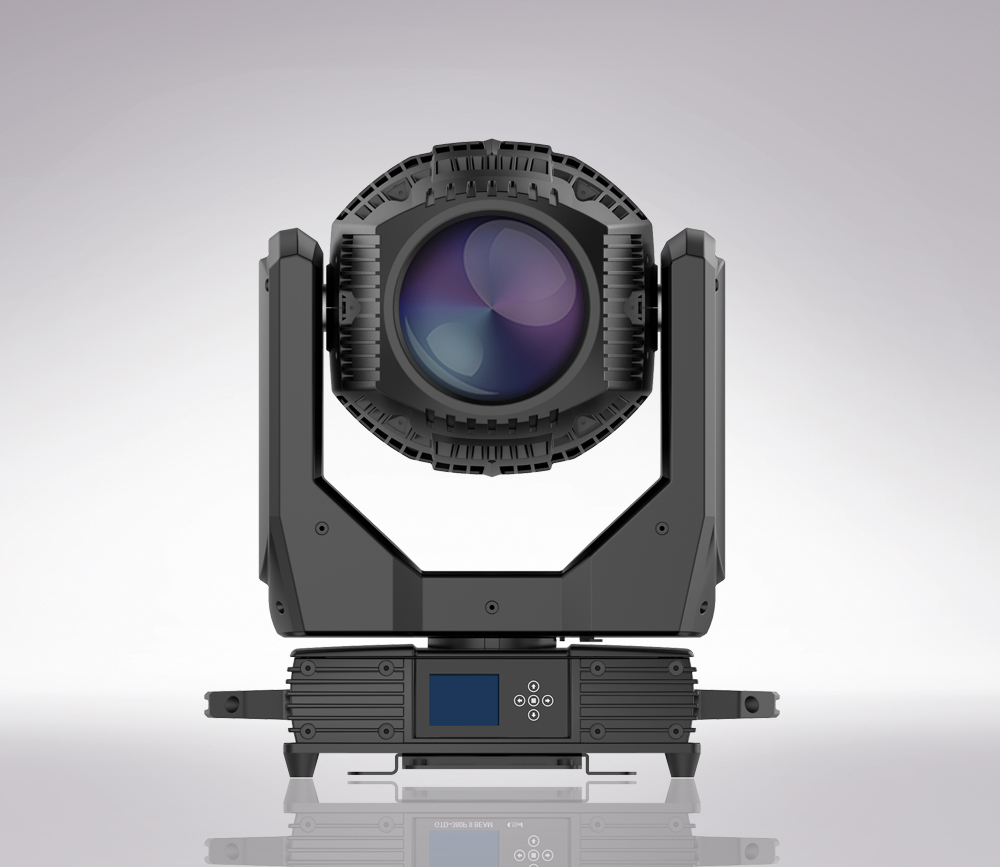

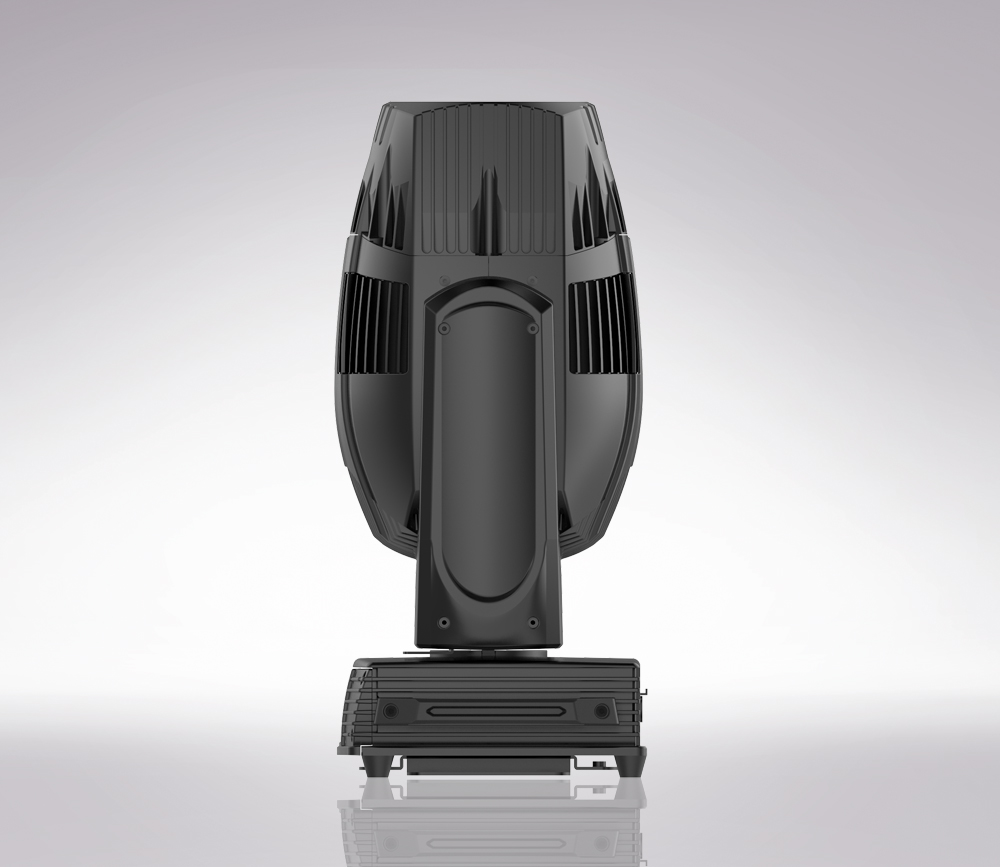

GTD-F3 N BEAM

OPTICAL

· Light source: PHILIPS MSD PLATINUM Flex 300S

· Expected life: 6,000 hours

· Color Temperature: 7,200K

· Angle: 2°

· Focus: High-precision glass lens, electronic linear high-definition focusing

GOBO

· Static gobo: 10 gobos+2 animation gobos, CW/CCW rotation, variable speed

COLOR

· Color wheel: 14 colors, CW/CCW rainbow effect, split color and linear control

ELECTRICAL

· Power input: AC 100V-240V 50/60Hz

· Power supply unit: waterproof plug

· DMX data input/output: Waterproof Chassis 3-pin Seetronic XLR

CONTROL/PROGRAMMING

· Control channel: 15/13/17

· Protocol: DMX-512, RDM

· Display: LCD

DYNAMIC EFFECTS

· Pan/tilt: 540°/270°, 16 bit control and Automatic return correction

· Strobe: 1-20Hz, synchronized and asynchronized, pulse effects

· Frost: 1 frost plate

· Dimmer: 0-100% linear mechanical dimmer

·Prism: 2 independent prism wheel

PHYSICAL

· Weight: 24kg

· IP rating: IP66

OTHERS

· Power setting: Internal battery, able to control the LCD display without power connection

· Sleep mode: When disconnect DMX, the fixture returns to sleep mode automatically

· Transmission: DMX signal, update software by DMX

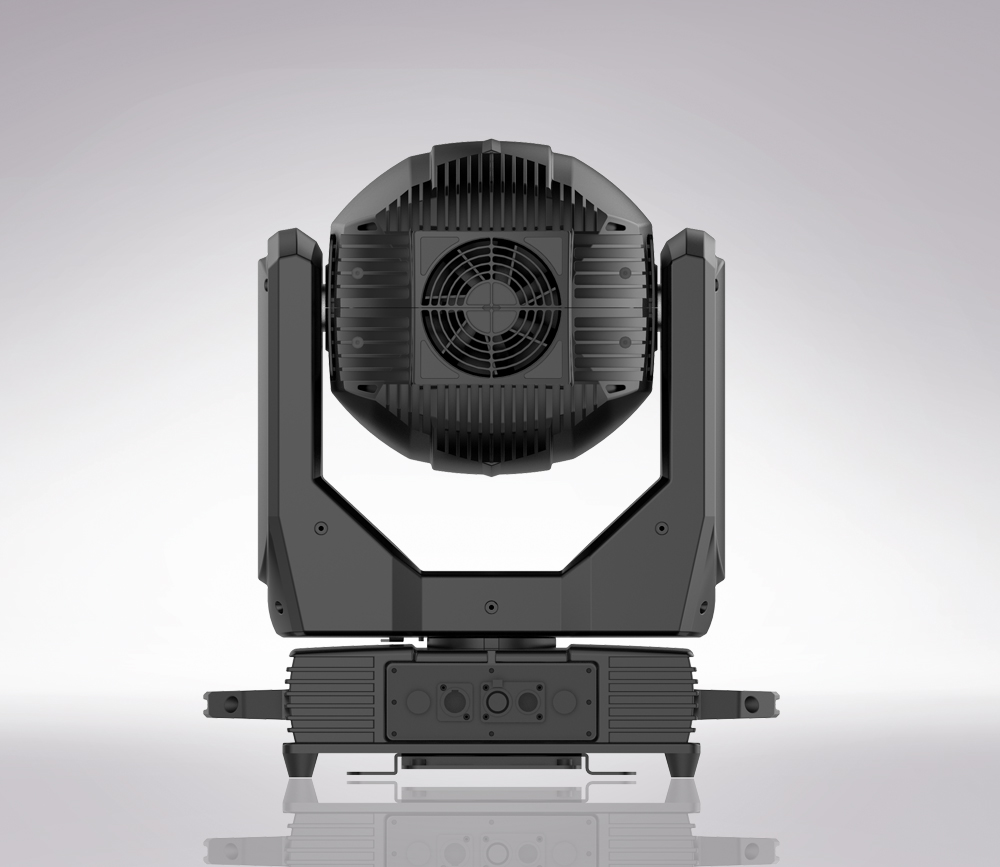

· Cooling: Active fan
