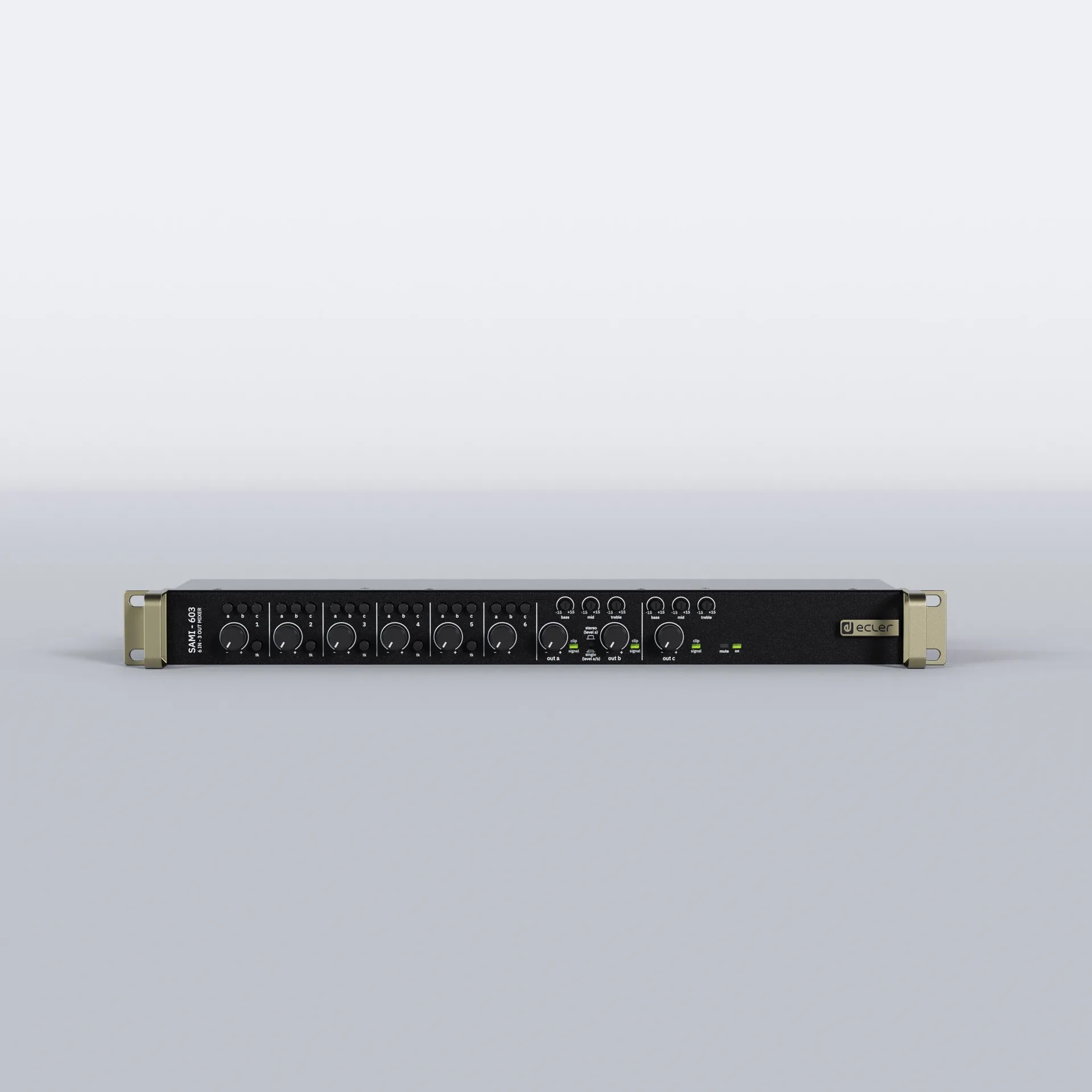

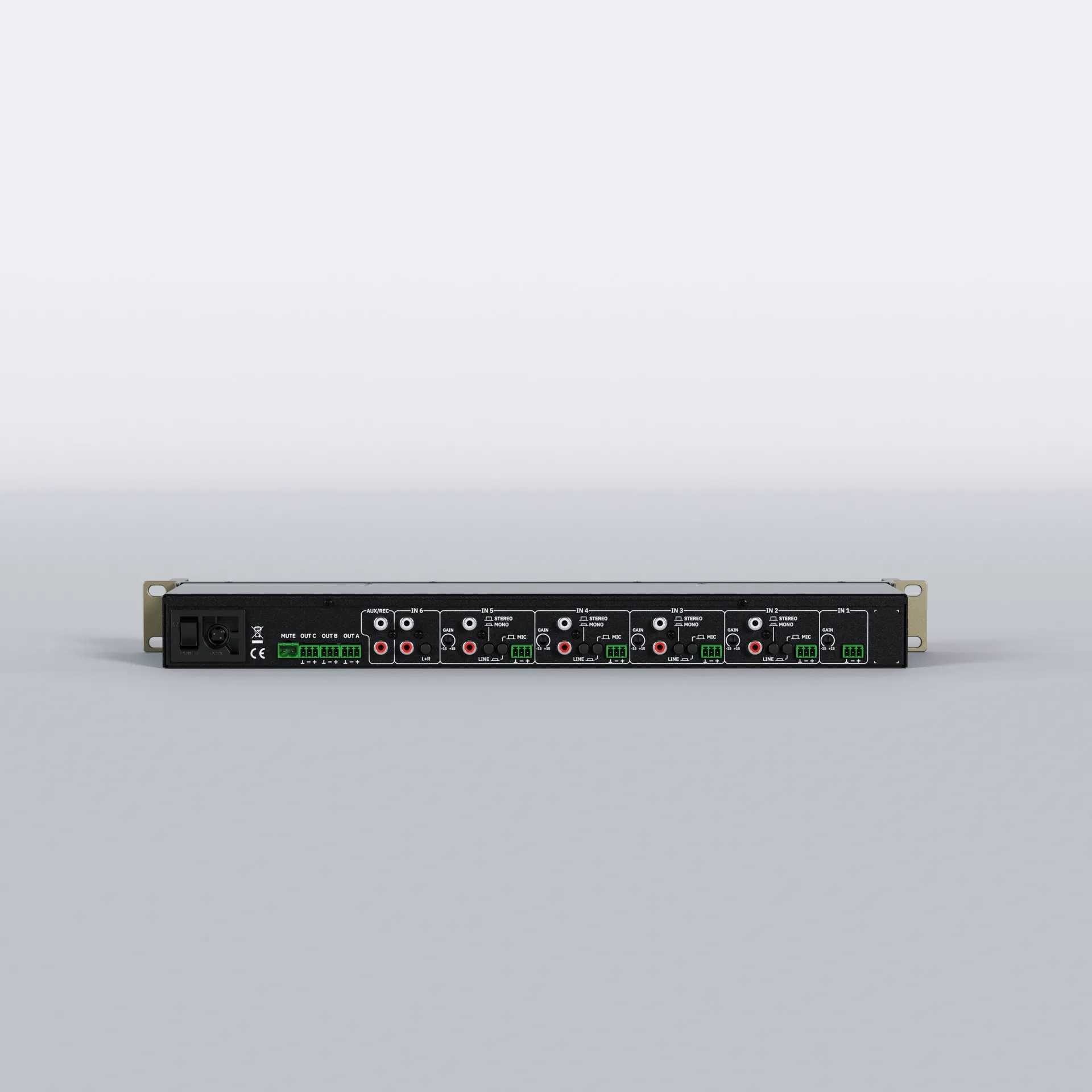

SAMI-603

Name: SAMI-603
Brand: ECLER
SKU: 44864
Availability: InStock

AMD 309,000

ANALOGUE STEREO MIXER | 6×3 |

Compare

Add to wishlist

Specification

6 input channels, 3 outputs 19” installation mixer

4 MIC/LINE stereo inputs

1 LINE stereo input

1 MIC input

1 stereo output or 2 x mono output (A and B outputs)

1 mono output (C output)

Independent inputs routing for zones A, B, C

1 AUX/REC output

Independent 3-band EQ control for outputs A/B and output C

MUTE remote control input enabled by external dry contact closure for connecting fire detection systems and other safety devices.
Switchable talkover function, from IN1 to IN5 over A, B, C outputs

Description

SAMI-603 is an installation audio mixer in standard rack format, featuring 1 MIC input + 4 MIC/LINE Stereo inputs + 1 LINE Stereo input and 3 outputs that can be configured as 1 stereo couple + 1 mono or 3 independent mono. Each output can get a dedicated mix from the available inputs and has a 3-band tone control. Talkover (priority) function is assignable to each input from IN1 to IN5 over the mix output buses. ST/MONO mix switch for the A/B outputs and MUTE port for external dry contact triggering.
